Features
- Lightweight portable powered speakers with legendary QSC amplifier power and reliability
- 1000 watt continuous Class D power modules in all models
- Extensive DSP enhances system performance
- Attractive and professional appearance
- Rugged ABS enclosures
- Powder coated steel grille
- Comfortable ergonomic handles
- 35 mm pole sockets with Tilt-Direct™ (fullrange models)
Extensive DSP processing is employed throughout, providing levels of sonic clarity and total output that defy the system's size and weight.
Premium-grade materials, advanced construction processes and multiple mounting and suspension options allow for a wide range of live and installed applications.
Combo XLR and 1/4" TRS inputs accept both Mic and Line Level input while a set of RCA phono inputs (except KSub) allow additional connectivity to portable MP3 players, CD players and line-level mixers. Up to three audio sources can be mixed internally and summed to a balanced output for "daisy-chaining" of multiple units. Separate direct outputs are also provided on each channel for additional output flexibility.

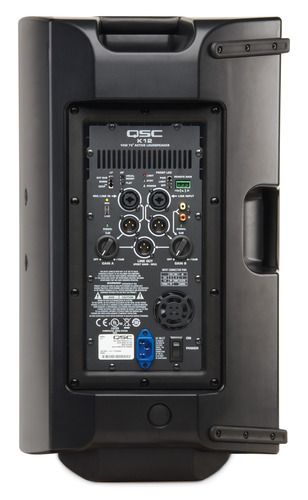

On-board switches provide preset EQ settings. The HF setting (fullrange models) can be set to VOCAL BOOST for additional presence in the critical mid-frequency area or FLAT for accurate reproduction of the incoming signal. The LF switch can be set to NORM, DEEP™ for additional bass extension, or EXT SUB (fullrange models) for use with an external subwoofer. The rear panel LED switch can be set to POWER, illuminating the front-mounted LED when the unit is powered on, OFF for applications where it is not desirable to illuminate the front LED, or LIMIT which indicates to the system operator that the clip limiter circuit has been engaged during operation.

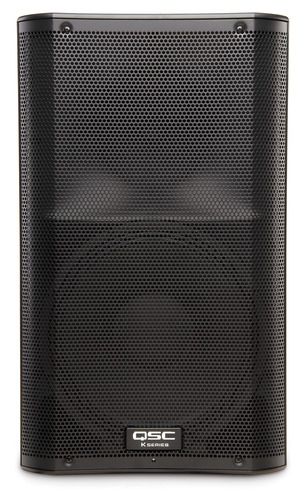

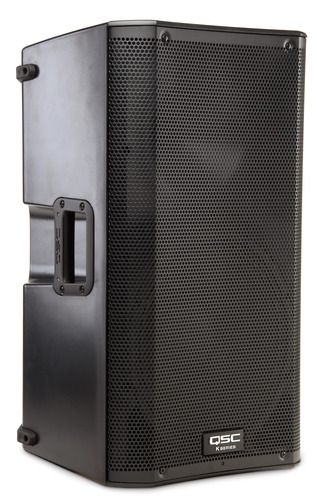

Fullrange models are housed in rugged ABS enclosures with a professional appearance that is at home in any application. ABS is a far more robust material than conventional speaker plastics and offers an additional measure of sonic clarity due to its internal rigidity. Ergonomic aluminum handles and a highly protective steel grille complete the package for ease of transport and long term durability.
The K Series fullrange models feature a unique Tilt-Direct™ pole cup mounting system. A simple turn of the dial engages a 7.5 degree downward tilt of the speaker allowing acoustic energy to be kept on the audience and off reflective surfaces for applications where maximum coverage from a high-positioned speaker is desired. Integrated M10 suspension points allow for suspended applications with a K SERIES M10 KIT (sold separately) or Yoke bracket (sold separately).
Extensive DSP
- DMT™ (Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural "dead" or "hot" frequency zones.
- Intrinsic Correction™, first featured in our high-end line-array products maps 65-75 spacially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat bandpass target. The result is a speaker that behaves equally well across the entire sound field.
- DEEP™ and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.
- GuardRail™ protection, first introduced on our GX Series amplifiers protects both the amplifier module and your performance from unnatural and destructive clipping.
Specifications
| K Series |  |
| SPECIFICATIONS | K12 |
|---|---|
| Configuration | Multipurpose 2-way |
| Transducers Low-frequency High-frequency |
12" cone transducer 1.75" diaphragm compression driver |
| Frequency Response (-6 dB) | 52 Hz - 18 kHz |
| Frequency Range (-10 dB) | 48 Hz - 20 kHz |
| Nominal Coverage (-6 dB) | 75° conical |
| Maximum SPL1 | 131 dB peak |
| Amplifiers | |
| Power Output2 | 1000 W continuous Class D (500 W LF, 500 W HF) 2000 W peak |
| Input Impedance (ohms) | XLR / ¼": 40k balanced / 20k unbalanced XLR / ¼" MIC mode: 2260 balanced RCA: 10k |
| Controls | Power, Gain A, Gain B, Mic/Line, LF Mode (Ext Sub/Norm/DEEP™), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit) |
| Indicators | Power, Signal A, Signal B, Standby, Limit, Mic |
| Connectors | Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector |
| Cooling | On demand, 50 mm variable speed fan |
| Amplifier Protection | Thermal limiting, output overcurrent, overtemperature muting, GuardRail™ |
| Transducer Protection | Thermal limiting, excursion limiting |
| AC Power Input | Universal power supply 100 - 240 VAC, 50 - 60 Hz |
| AC Power Consumption (1/8 Power) |
100 VAC, 2.3 A 120 VAC, 2.01 A 230 VAC, 1.13 A |
| Enclosure | |
| Material | Impact resistant ABS |
| Finish | Black paint |
| Grille | Black powder coated 18 gauge steel |
| Dimensions (HWD) | 23.7" x 14" x 14" 603 mm x 356 mm x 356 mm |
| Weight (Net) | 41 lb / 18.6 kg |
| Available Accessories | K12 TOTE, K12 YOKE, K SERIES M10 KIT |
2 Independent of limiters and driver protection circuits.
Enclosure Dimensions
All Specifications Subject to Change Without Notice.
| K Series Amplifier Modules |
| K12 |
